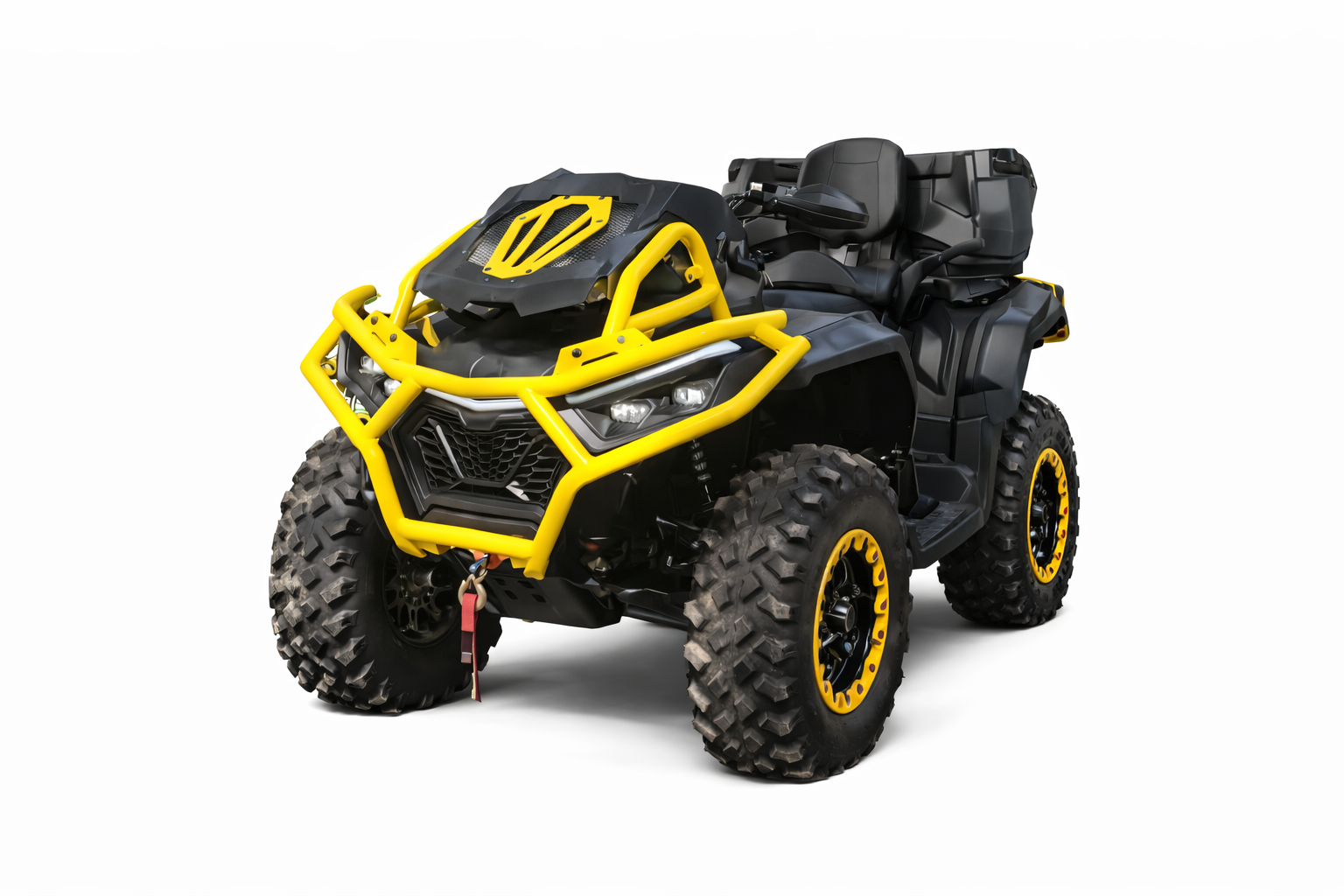

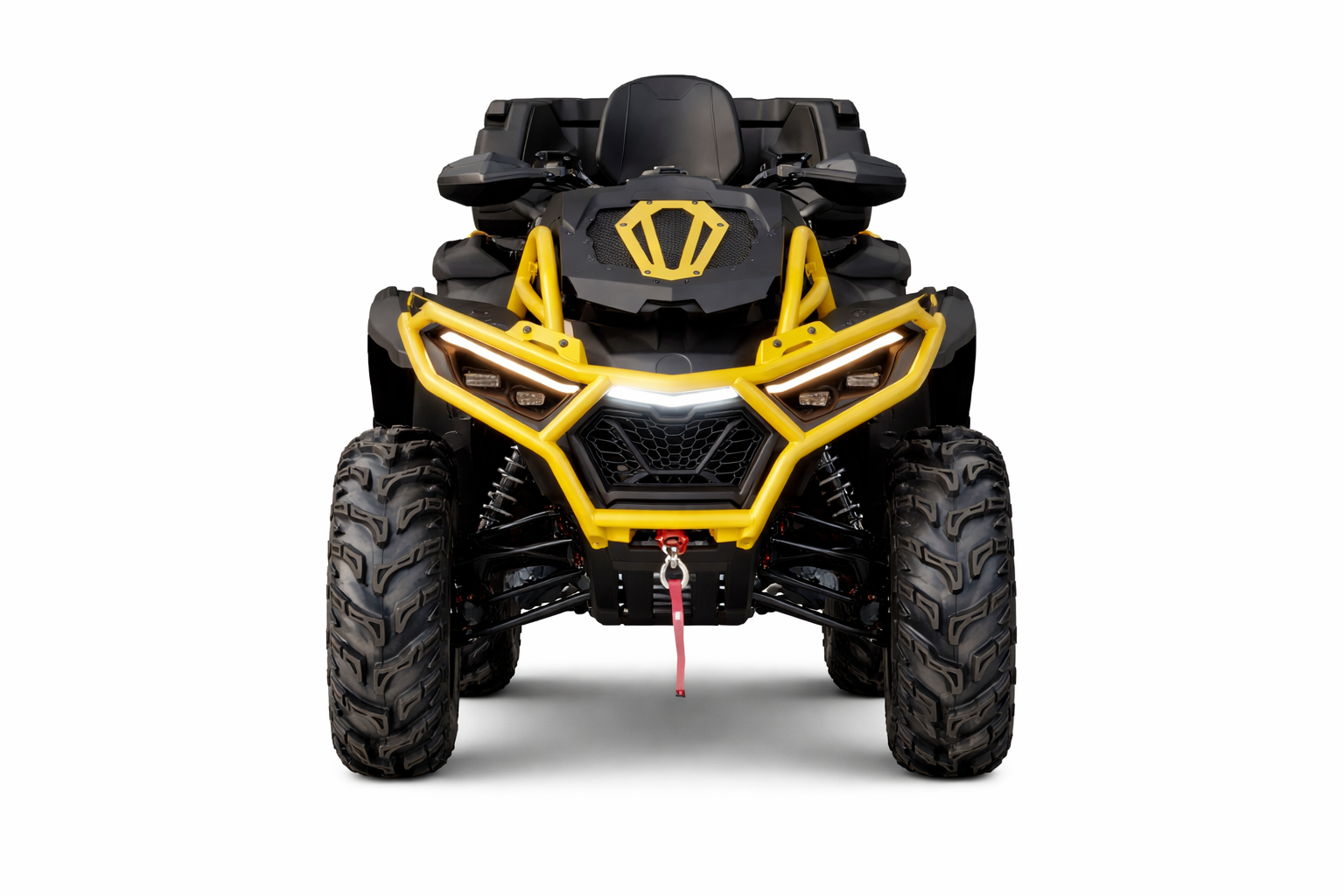

Kodiak 1000 EFI ATV - 1000CC V-Twin Engine
BUILT FOR THE WILD. ENGINEERED TO DOMINATE
The MSRP price does not include freight & PDI charge or documentation fee.
Precision Fuel Injection (EFI) ensures smooth power delivery, improved fuel efficiency, and reliable cold starts in any condition. Whether you're hauling, climbing, or blazing through trails, the Kodiak responds with confidence and raw strength
DUAL-RANGE PERFORMANCE CONTROL
Switch effortlessly between High Range for aggressive trail riding and Low Range for controlled crawling and heavy-duty tasks
β EXTREME POWER NOTICE
The 1000cc V-Twin delivers aggressive acceleration and high torque output. Designed for experienced riders, this machine performs best in controlled environments and proper riding conditions
THE POWER OF CONTROL
Heavy-Duty Suspension System
Built to absorb harsh terrain, the independent suspension system provides superior ground clearance and enhanced shock absorption for a smoother, more controlled ride
Trail-Ready Stance
A wide wheelbase and reinforced chassis design provide enhanced stability during sharp turns, steep climbs, and uneven surfaces
Responsive Drivetrain
The advanced transmission system transfers power efficiently to all four wheels, ensuring maximum traction when you need it most
CONFIDENCE IN EVERY DETAIL
Rider-Focused Cockpit
The ergonomic handlebar positioning, digital display cluster, and easy-access controls put total command at your fingertips
Aggressive LED Lighting
Full LED headlights and taillights ensure clear visibility for early morning rides and late-night adventures
Built for Utility
With heavy-duty racks and high towing capacity, the Kodiak 1000 is ready for both recreation and hard work — from farm duties to off-road expeditions
SPECIFICATIONS
Technical data*
- Engine Type: 976cc, V-Twin, SOHC, 4-Stroke, Water-Cooled
- Fuel System: BOSCH® Electronic Fuel Injection (EFI)
- Horsepower: 92 HP (68kw) @ 7300 RPM
- Max Torque: 95 N.m @ 5500 RPM
- Transmission: Automatic CVT (P-R-N-L-H)
- Drive System: Shaft Drive; On-Demand 2WD/4WD with Front Differential Lock
Front Suspension: Independent Arched Double A-Arm w/ Sway Bar
Rear Suspension: Torsional Trailing arm Independent (TTI)
Front Brakes: Dual 260 mm Disc Brakes, Hydraulic Twin-Piston Calipers
Rear Brakes: Dual 260 mm Disc Brakes, Hydraulic Twin-Piston Calipers
Overall (L x W x H): 96.5 x 50.8 x 59 in (2450 x 1290 x 1500 mm)
Wheelbase: 59 in (1493 mm)
Ground Clearance: 13 in (330 mm)
Seat Height: 36.75 in (933 mm)
Dry Weight: 1014 lbs (460 kg)
Payload Capacity: 740 lbs (336 kg)
Rear Rack Capacity: 150 lbs (68 kg)
Seating: 2 Persons
Fuel Capacity: 4.8 Gallons
- Wheels: 14-inch Aluminum with Beadlock
- Front Tires: 28 x 9-14
- Rear Tires: 28 x 11-14
Red / Blue / Green / Orange / Yellow / White / Black / Grey
* Preliminary data for non-binding information. Subject to change.
